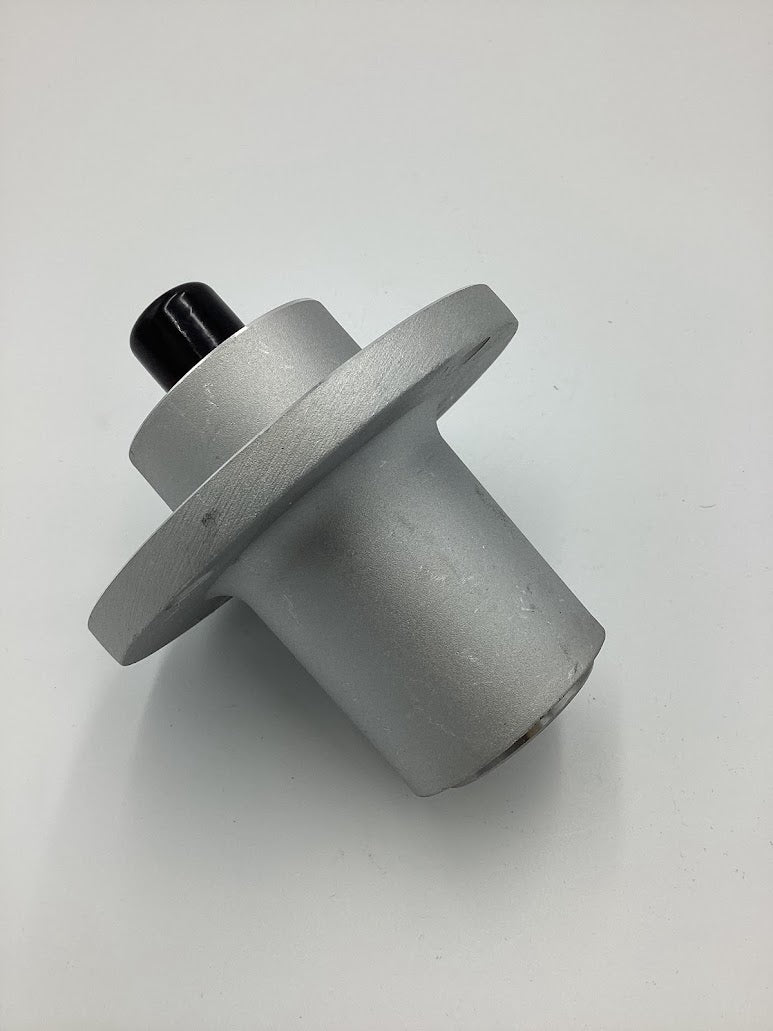

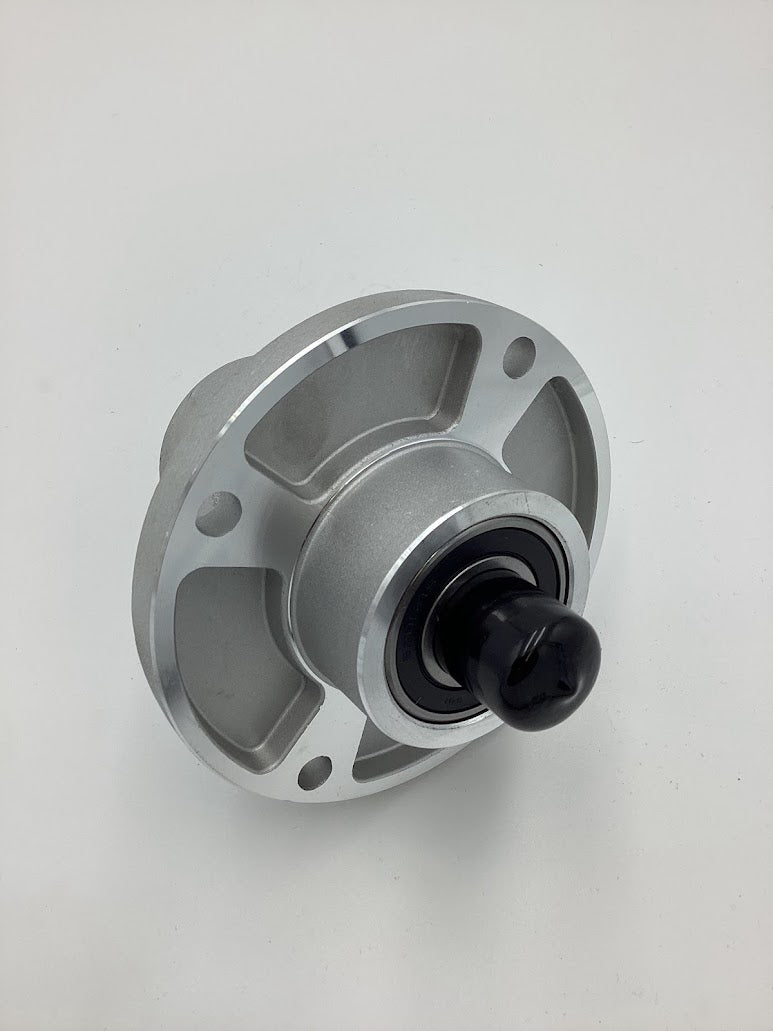

Hustler / BigDog Spindle Assembly Suits Raptor SD / X / XD / Sport (601804, 607418)

Hustler / BigDog Spindle Assembly Suits Raptor SD / X / XD / Sport (601804, 607418)

ALTERNATE SUPPLIER

GA SPARES: JAS8583

Description:
High-quality aftermarket late model spindle assembly manufactured to OEM specifications for selected BigDog and Hustler zero-turn ride-on mowers. This complete spindle assembly is supplied with pre-installed mounting bolts, making installation faster while restoring smooth blade rotation and optimum cutting performance.

Designed for selected 36", 42", 46", 48", 54" and 60" cutter decks fitted with round centre hole blades.

Replaces OEM Part Numbers

BigDog

• 601804
• 607418

Hustler

• 601804
• 607418

Specifications

• Type: Complete Late Model Spindle Assembly
• Centre Hole Type: Round
• Deck Sizes:
  • 36" (915 mm)
  • 42" (1067 mm)
  • 46" (1168 mm)
  • 48" (1220 mm)
  • 54" (1372 mm)
  • 60" (1524 mm)
• Mounting: Includes pre-installed mounting bolts
• Standard Pack Quantity: 1

Fits Applications

BigDog

36" Deck

A Series

• 931337EX

Quantity Required: 2

42" Deck

A Series

• 931345EX

Alpha MP

• 936393EX

C Series

• 931428EX*
• 931436EX*
• 933572EX

Quantity Required: 2

Note: Models marked (*) used two different spindle assemblies during production. Machines with serial numbers 11021630–11021740 may require OEM 783506 (our alternative spindle assembly). Please compare your existing spindle before ordering.

46" Deck

C Series

• 931451EX
• 933580EX

Quantity Required: 2

48" Deck

Alpha MP

• 932947EX
• 936526EX
• 937581EX

R Series

• 931493AU

Stout

• 933549EX

Quantity Required: 3

54" Deck

Alpha MP

• 932939EX
• 936518EX
• 937573EX

C Series

• 933598EX

R Series

• 931519EX

Stout

• 933556EX

Quantity Required: 3

60" Deck

R Series

• 931535AU

Stout

• 933168EX

Quantity Required: 3

Hustler

36" Deck

FasTrak Super Duty

• 932491EX

Raptor SD

• 935262EX
• 938365EX

Quantity Required: 2

42" Deck

FasTrak Super Duty

• 932517EX

Raptor SD

• 935270EX
• 936559EX
• 938407EX

Raptor X

• 940494EX

Raptor XD

• 939819EX

Sport

• 930198EX*
• 930206EX*
• 932293EX*

Quantity Required: 2

Note: Sport models marked (*) may use an alternative spindle (OEM 783506) on serial numbers 11021630–11021740.

48" Deck

Raptor FlipUp

• 935288EX

Raptor SD

• 932566EX
• 936542EX
• 938399EX

Raptor XD

• 940510EX

Sport

• 930222EX

Quantity Required: 3

54" Deck

Raptor SD

• 932558EX
• 936534EX
• 938381EX

Raptor X

• 940502EX

Raptor XD

• 939751EX

Sport

• 933473EX

Quantity Required: 3
