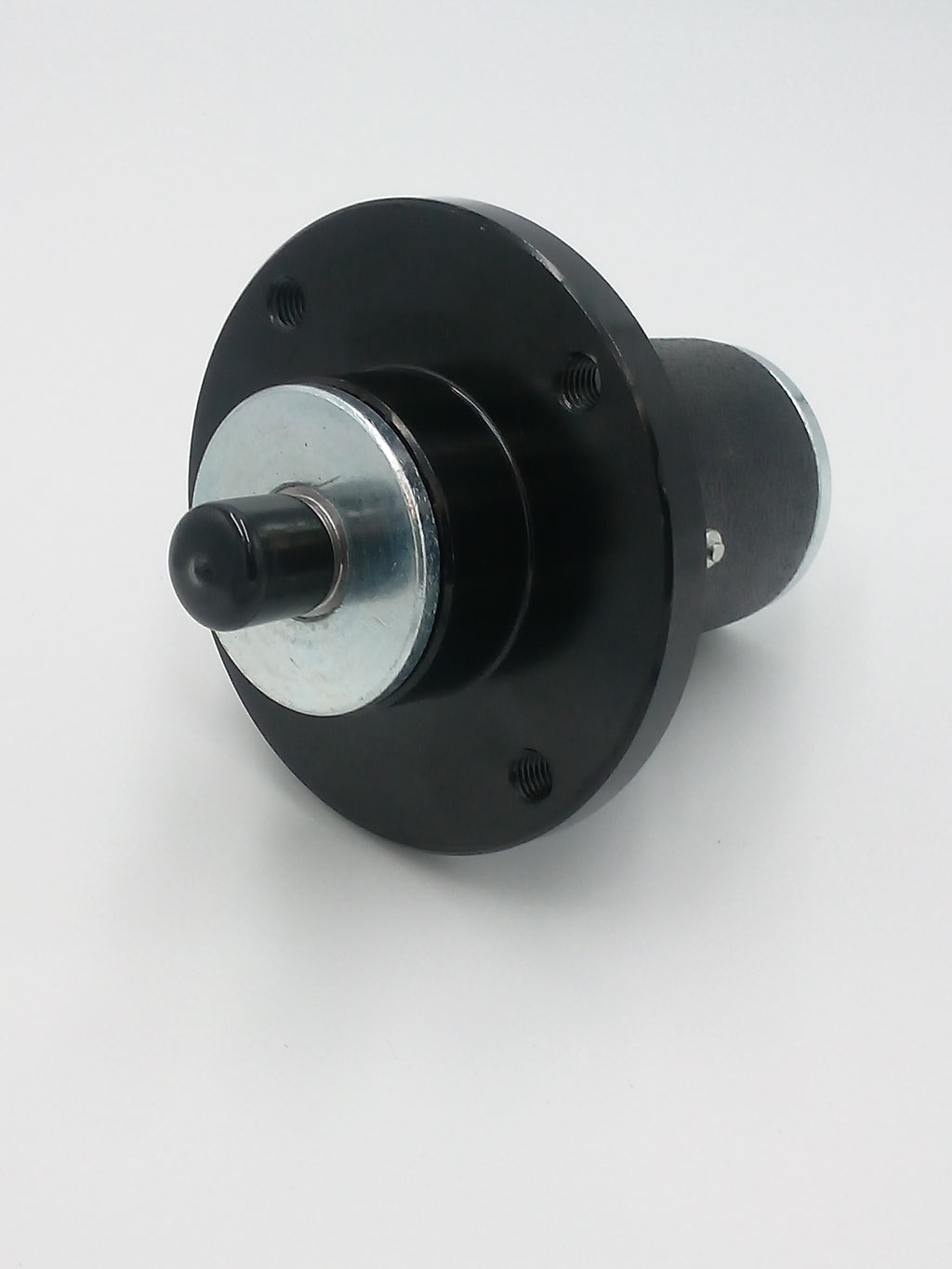

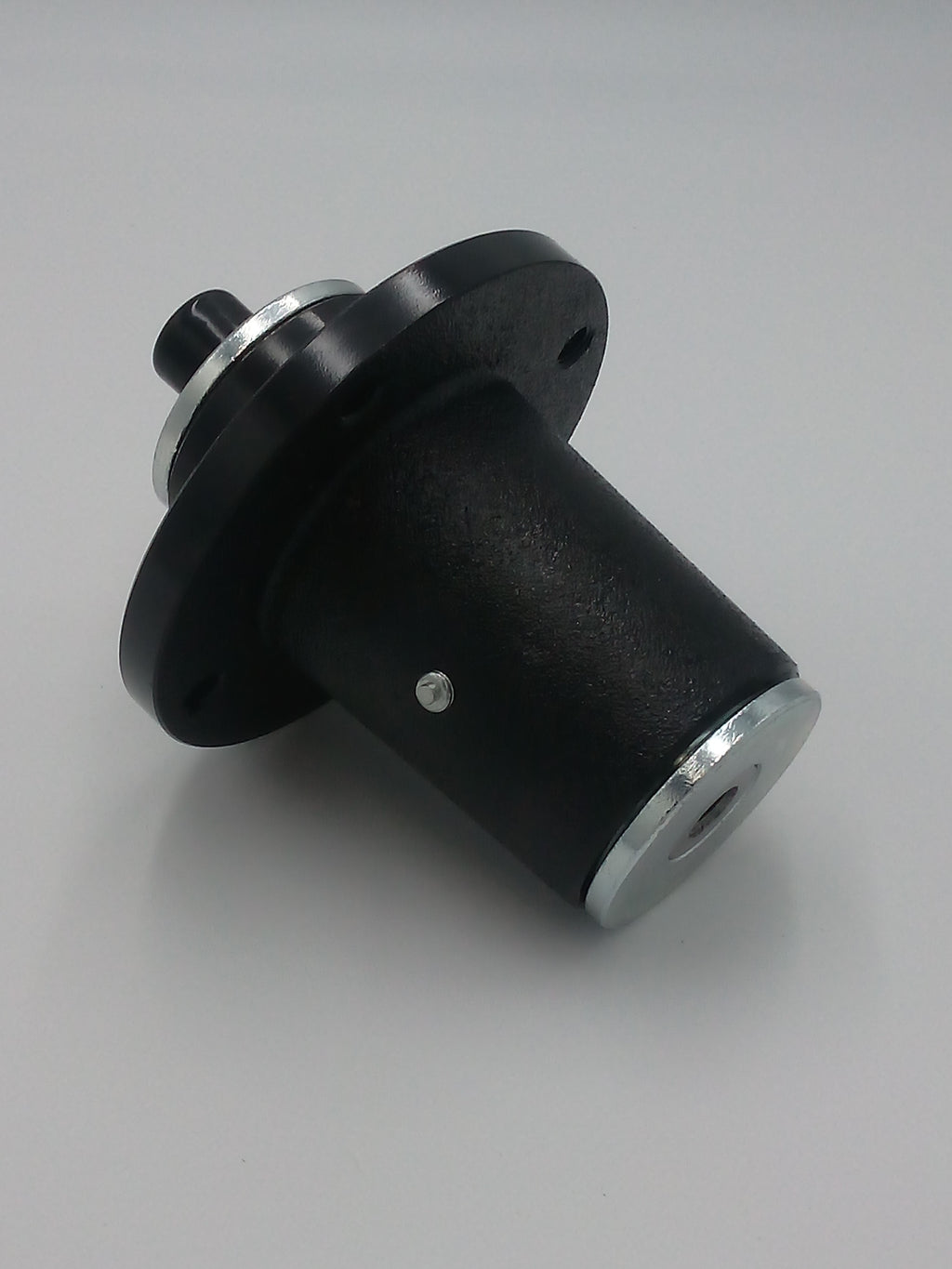

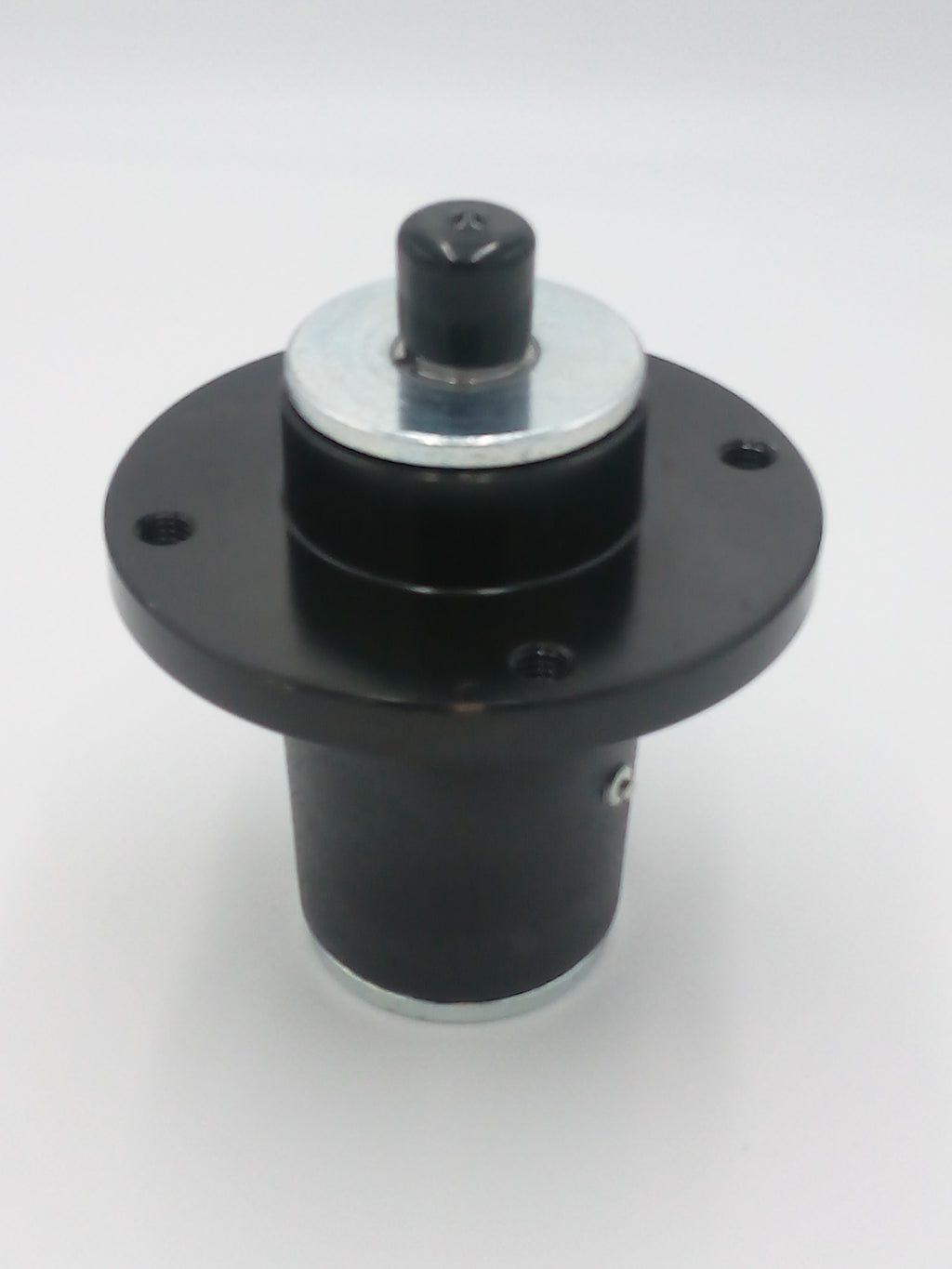

BigDog / Hustler Spindle Assembly Cast Iron Type (Replaces 604255, 607407) Suits 36" to 104" Cut Mowers

BigDog / Hustler Spindle Assembly Cast Iron Type (Replaces 604255, 607407) Suits 36" to 104" Cut Mowers

ALTERNATE SUPPLIER

GA SPARES: JAS8565

Description:
Heavy-duty aftermarket cast iron spindle assembly designed to suit a wide range of BigDog and Hustler commercial zero-turn ride-on mowers. Manufactured to OEM specifications using a durable cast iron housing, this spindle assembly delivers exceptional strength, long service life and reliable cutting performance in demanding commercial mowing environments.

Suitable for selected 36", 48", 52", 54", 60", 66", 72" and 104" cutter decks fitted with round centre hole blades.

Replaces OEM Part Numbers

BigDog

• 604255
• 607407

Hustler

• 604255
• 607407

• Specifications

  • Type: Cast Iron Spindle Assembly
  • Housing: Heavy-Duty Cast Iron
  • Centre Hole Type: Round
  • Deck Sizes:
    • 36" (915 mm)
    • 48" (1220 mm)
    • 52" (1320 mm)
    • 54" (1372 mm)
    • 60" (1524 mm)
    • 66" (1676 mm)
    • 72" (1828 mm)
    • 104" (2642 mm)
  • Standard Pack Quantity: 1

Fits Applications

BigDog

52" Cut – Diablo

• 933366EX
• 935551EX
• 936344EX

Quantity Required: 3

60" Cut

Diablo

• 933242EX
• 935569EX
• 936351EX

Diablo MP

• 933291EX
• 935122EX
• 937292EX

Quantity Required: 3

72" Cut

Diablo

• 933275EX
• 936443EX

Diablo MP

• 935106EX

Quantity Required: 3

Hustler

36" Cut

Super S Stander

• 940288EX

Quantity Required: 2

48" Cut

X-One Side Discharge

• 933135EX
• 934133EX
• 934497EX

Quantity Required: 3

54" Cut

Super Z / Super Z HD Side Discharge

• 938100EX
• 938878EX

X-One Side Discharge

• 932780EX
• 934158EX
• 934810EX
• 936740EX
• 941112EX

Z Diesel Side Discharge

• 931196EX

Quantity Required: 3

60" Cut

Super Z / Super Z HD Rear Discharge

• 932178EX*
• 935320EX*
• 937078EX*
• 938126EX*
• 941195EX*

Super Z / Super Z HD Side Discharge

• 932160EX
• 934927EX
• 935254EX
• 937003EX
• 937060EX
• 938118EX
• 938886EX
• 941146EX

Super Z HyperDrive Rear Discharge

• 941336EX*

Super Z HyperDrive Side Discharge

• 940551EX
• 9413101EX

X-One Side Discharge

• 932723EX
• 934174EX
• 934836EX
• 936799EX
• 941120EX

Z Diesel Rear Discharge

• 931212EX*
• 932681EX*
• 938191EX*

Z Diesel Side Discharge

• 931204EX
• 932673EX
• 938183EX

Quantity Required: 3

Rear Discharge Note: Rear discharge decks use 2 × this spindle assembly plus 1 × OEM 604256 / 607408 (not currently stocked).

66" Cut

Super Z / Super Z HD Side Discharge

• 932657EX
• 935494EX
• 937102EX

Quantity Required: 3

72" Cut

Super Z / Super Z HD Side Discharge

• 932152EX
• 934950EX
• 935338EX
• 937037EX
• 937086EX

Super Z HyperDrive Side Discharge

• 940577EX
• 941344EX

Z Diesel

• 931238EX
• 932699EX
• 938225EX

Quantity Required: 3

104" Cut

Super 104

• 931733EX*
• 938910EX*
• 939603EX*
• 940544EX*

Quantity Required: 6
